SWH Accessories

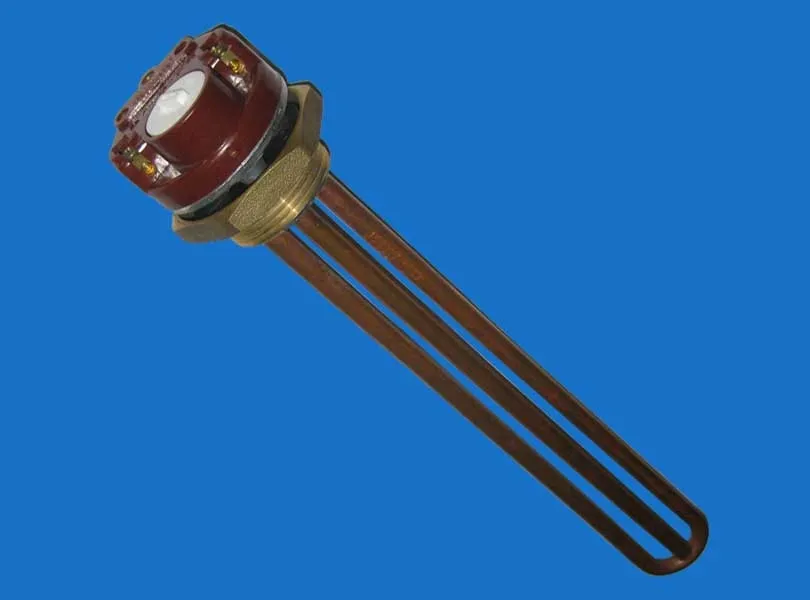

Electric Heater
Backup electric heating element for solar water heaters.
- Back-up heatingEnsures hot water on cloudy days
- Thermostat built-inAdjustable temperature limit
- Safe designDry-burn and leakage protection
- Standard flangeFits common tank openings
| Power | 1.5kW – 3kW |
|---|---|
| Voltage | 220V |
| Feature | Backup heating |
| Application | SWH |
Product Introduction
EverPeak electric backup heaters provide reliable hot water when solar gain is insufficient, such as long cloudy spells or high-demand periods. They insert into a dedicated tank sleeve and switch on only when needed.
Each element includes an adjustable thermostat and multiple safety interlocks—over-temperature cut-out, dry-burn protection and leakage current monitoring—for safe operation in wet environments.
Available in 1.5-6kW ratings with standard flanges and threaded bodies to retrofit most solar storage tanks.
Main Features
- 1.5 / 3 / 6 kW ratings
- Adjustable thermostat 30-75°C
- Over-temperature and dry-burn cut-out
- Leakage-current protection
- Stainless heating element
- G1-1/2 flange or threaded body
Specifications
| Model | Power | Thermostat | Element | Protection | Mount |
|---|---|---|---|---|---|
| EP-EH15 | 1.5kW | 30-75°C | SS | 3-fold | G1-1/2 |
| EP-EH30 | 3.0kW | 30-75°C | SS | 3-fold | G1-1/2 |
| EP-EH60 | 6.0kW | 30-75°C | SS | 3-fold | Flange |
Item Details
Operation
- On demand
- Heats only when solar is low.
- Thermostat
- Adjustable 30-75°C limit.
- Sleeve
- Inserts into tank heat sleeve.
Safety
- Cut-out
- Over-temp and dry-burn trip.
- Leakage
- Current monitor for wet areas.
- Element
- Stainless, scale resistant.
Fit
- Flange
- G1-1/2 or flange body.
- Retrofit
- Fits most solar tanks.
- Seal
- Supplied gasket included.
Core Application Scenarios
- 01Cloudy-day backup
- 02Legionella control
- 03Off-season use
- 04Retrofit tanks
Get a Quote for This Product
Tell us your required quantity and destination port — we will send a detailed quotation within 24 hours.
