PVT Solar Collector
Hybrid panel generating electricity and hot water simultaneously.
- PV + thermal hybridGenerates electricity and hot water simultaneously
- Higher total efficiencyUp to 70% combined energy yield from one surface
- Reduced roof footprintOne panel replaces separate PV and solar thermal
- Active cell coolingImproved PV output during high irradiance
| Type | PVT hybrid |
|---|---|
| Power | 300W – 400W |
| Function | Electricity + heat |
| Feature | Hybrid |
Product Introduction
Our PVT (Photovoltaic-Thermal) solar collector combines monocrystalline silicon cells with a copper or aluminum thermal absorber beneath. It produces electricity from the top surface while capturing waste heat through the rear fluid channel, delivering both power and hot water.
By actively cooling the PV cells, PVT panels maintain higher electrical efficiency in hot climates and extend cell lifetime. The collected thermal energy can be used for domestic hot water, space heating, or industrial pre-heating.

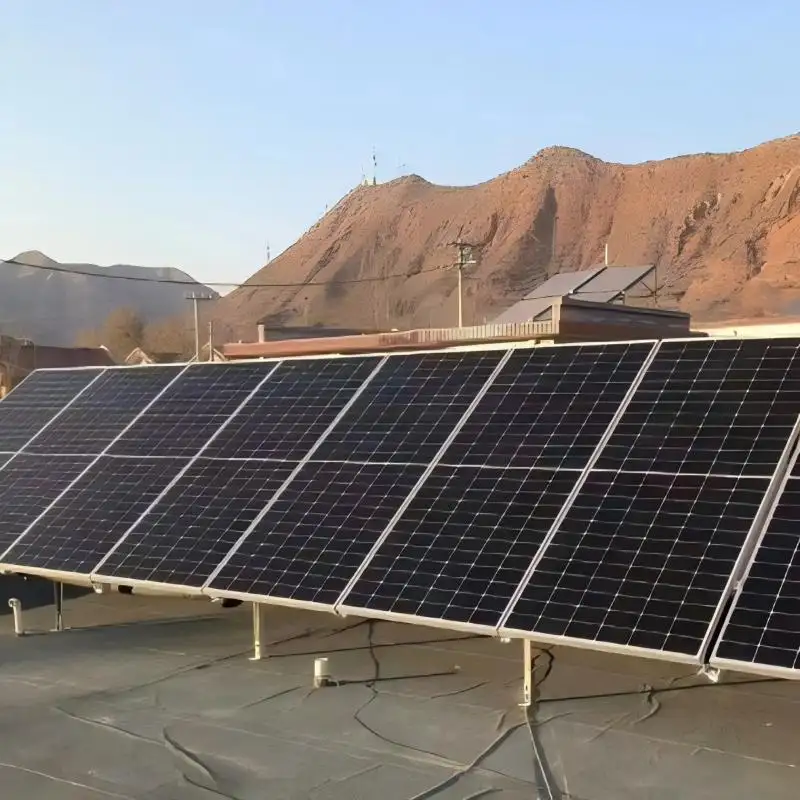

PVT systems are ideal for buildings with limited roof space, agrivoltaic greenhouses, and decentralized energy projects that want to maximize renewable yield per square meter.
Main Features

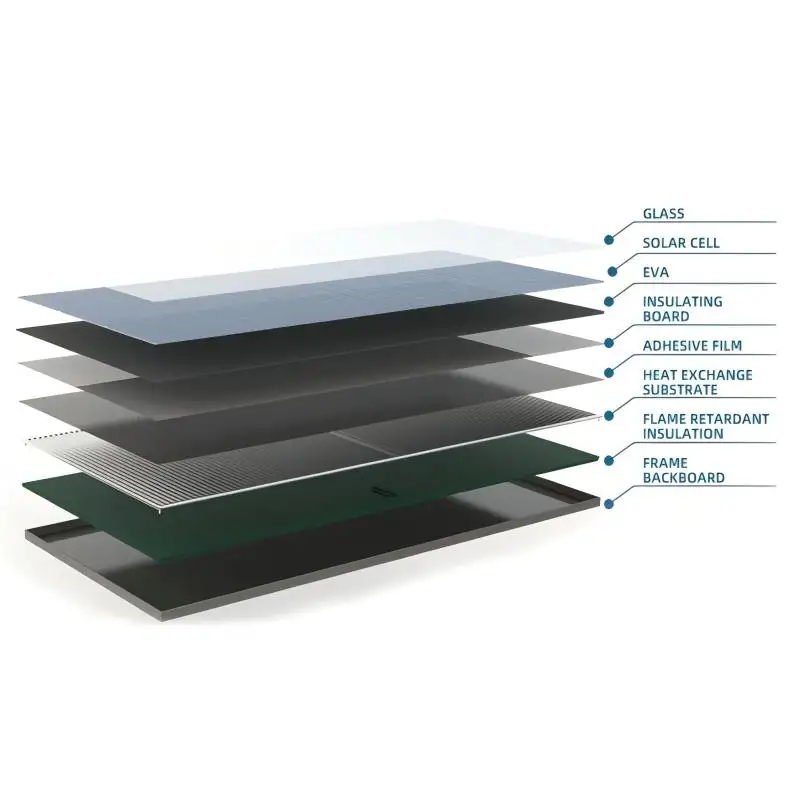

- Monocrystalline PERC cells with 20-21% electrical efficiency
- Copper pipe or roll-bond aluminum thermal absorber
- Tempered glass front and TPT/TPE backsheet
- Anodized aluminum frame with drainage holes
- Operating thermal temperature up to 60°C
- MC4 connectors and standard hydraulic fittings
Specifications
| Model | PVT Power | Thermal Area | Cell Type | Electrical Eff. | Thermal Eff. |
|---|---|---|---|---|---|
| EP-PVT280 | 280 Wp | 1.80 m² | Mono PERC | 20.1% | 45% |
| EP-PVT320 | 320 Wp | 1.80 m² | Mono PERC | 21.0% | 45% |
| EP-PVT400 | 400 Wp | 2.00 m² | Mono PERC | 20.5% | 42% |
Item Details
Dual Energy Output
- Electricity
- DC power from the front PV cells feeds inverter or battery.
- Heat
- Fluid behind absorber removes heat for water or space heating.
- Total yield
- Combined electrical + thermal efficiency up to 70%.
Cooling Benefit
- Cell temperature
- Active cooling keeps cells 10-20°C lower than standard PV.
- Power gain
- Typical 5-10% more kWh per year in hot climates.
- Degradation
- Lower operating temperature slows long-term power decay.
System Integration
- Inverter
- Grid-tie or hybrid inverter sized to PVT DC rating.

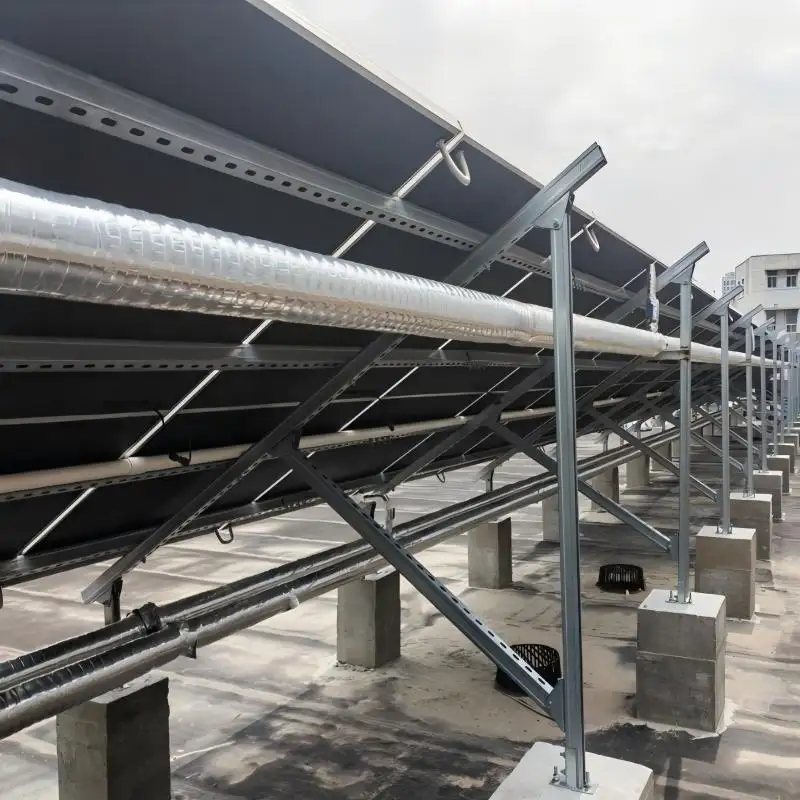

- Thermal loop
- Pump station + tank sized to heat demand.
- Monitoring
- Optional remote monitoring for both PV and thermal output.
Core Application Scenarios

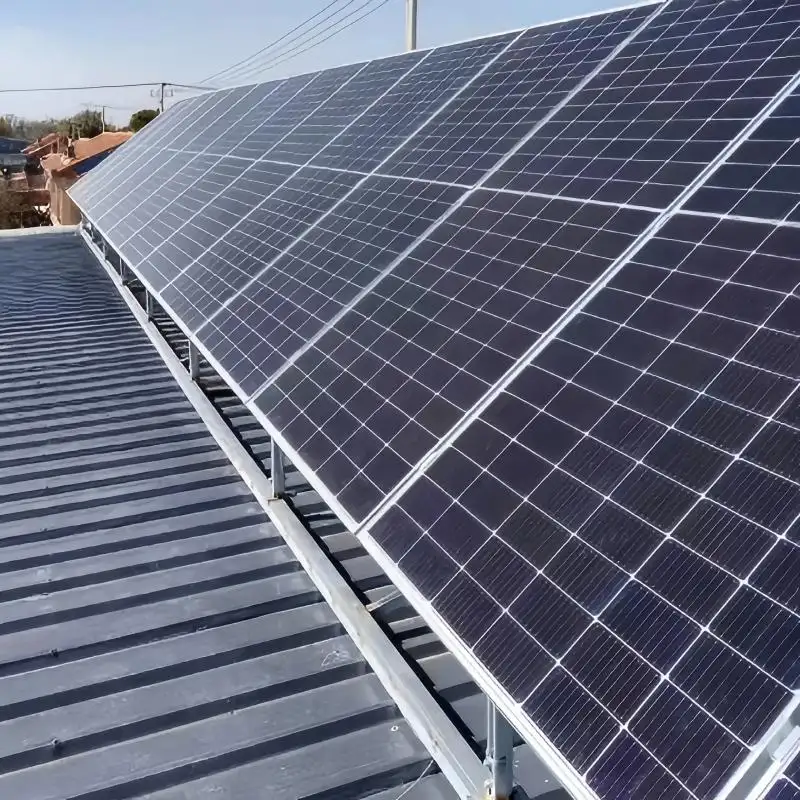

- 01Building-integrated solar roofs
- 02Agrivoltaic greenhouses
- 03Decentralized microgrids
- 04Hotels and sports centers
