Solar Water Heater

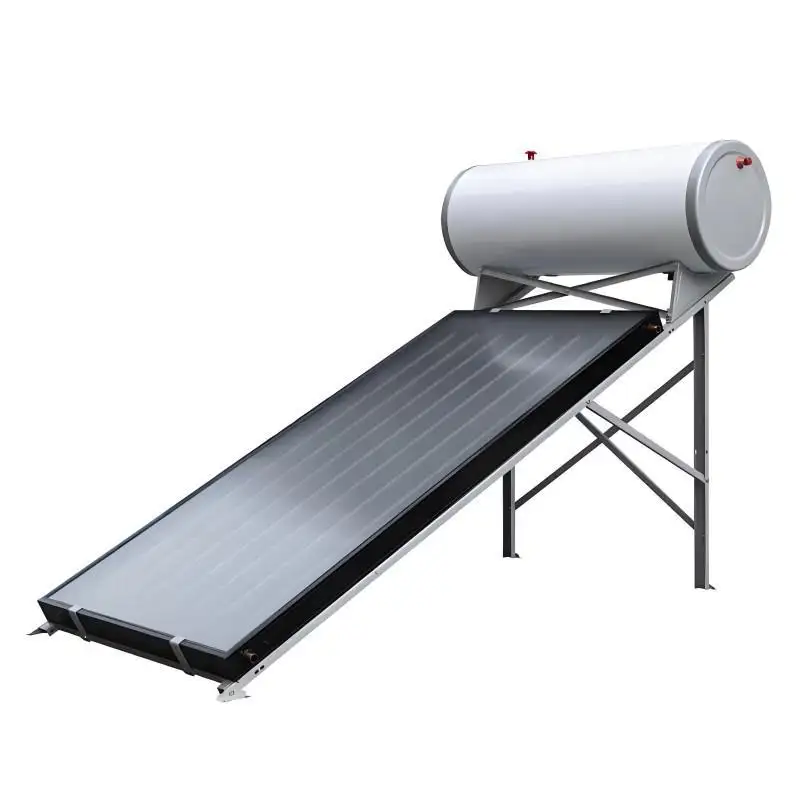

Flat Plate Pressurized Solar Water Heater
Flat plate collector with pressurized tank for high-efficiency hot water.
- CollectorFlat plate, copper absorber
- TankEnamel / pressurized
- Working Pressure≤ 6 bar
- Capacity100L – 300L
| Capacity | 100L – 300L |
|---|---|
| Type | Flat plate, pressurized |
| Material | Enamel tank |
| Warranty | 5 years |
Product Introduction

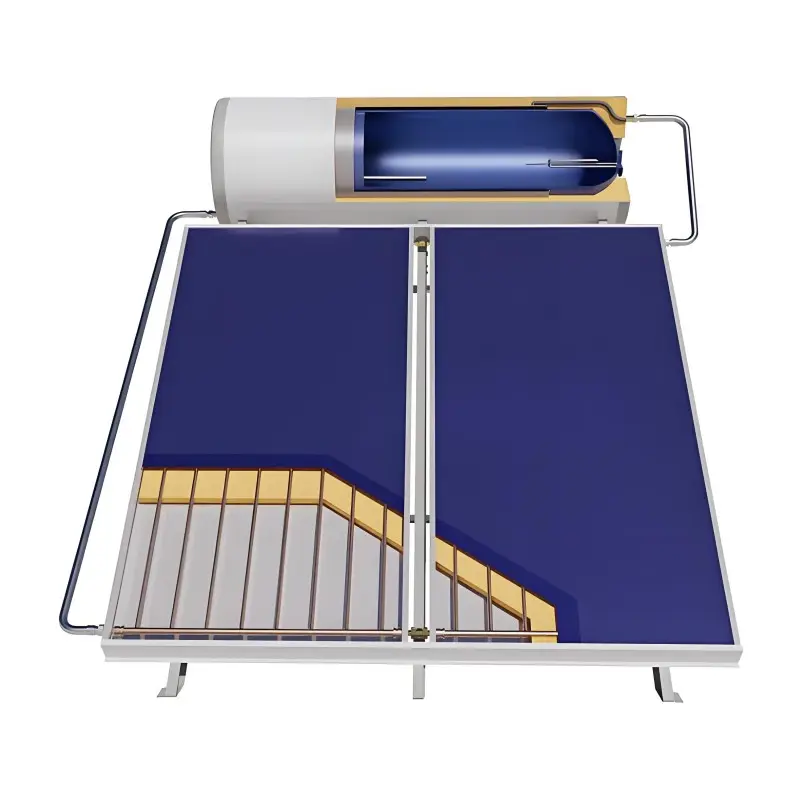

The flat-plate pressurized solar water heater pairs a flat-plate collector with a pressurized storage tank. The collector uses a highly absorptive copper sheet (AL/N selective coating) under tempered glass; solar heat is transferred through the absorber to the water or glycol flowing in copper riser tubes, then to the pressurized tank via a heat exchanger.
Because the tank is pressurized, hot water is supplied at mains pressure — strong showers and direct appliance connection, with no roof tank required. The enamel-coated tank resists corrosion and scale, suiting hard-water regions.
Flat-plate collectors are mechanically robust, low-profile and easy to integrate into pitched roofs, with stable performance in warm climates.
Main Features
- Pressurized enamel tank delivers hot water at mains pressure, no roof tank needed.
- Copper absorber with AL/N selective coating for efficient, even heat collection.
- Robust flat-plate design: tempered glass cover, aluminum housing, wind and hail resistant.
- Enamel (glass-lined) tank resists corrosion and scaling in hard-water areas.
- Simple, low-maintenance system suitable for residential and small commercial use.
Specifications
| Model | Collector Area (m²) | Collector Type | Tank Capacity (L) | Working Pressure | Loading 40HQ / 20GP |
|---|---|---|---|---|---|
| FPT-100 | 2.0 | Flat plate | 100 | ≤ 6 bar | 150 / 60 |
| FPT-150 | 3.0 | Flat plate | 150 | ≤ 6 bar | 110 / 44 |
| FPT-200 | 4.0 | Flat plate | 200 | ≤ 6 bar | 85 / 34 |
| FPT-250 | 5.0 | Flat plate | 250 | ≤ 6 bar | 70 / 28 |
| FPT-300 | 6.0 | Flat plate | 300 | ≤ 6 bar | 58 / 23 |
Item Details

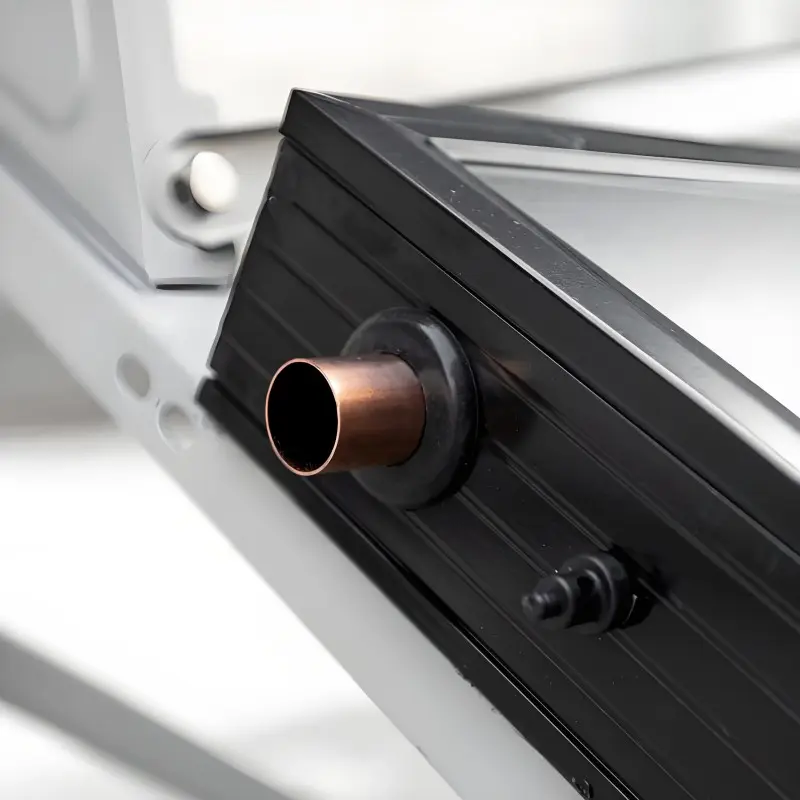

Flat Plate Collector
- Absorber
- Copper sheet, AL/N selective coating
- Cover
- 4mm tempered glass
- Housing
- Anodized aluminum
- Performance
- Stable in warm climates
Pressurized Tank
- Inner Tank
- Enamel-coated (glass-lined) steel
- Outer Tank
- Color steel / Stainless steel (optional)
- Insulation
- High-density polyurethane foam
- Heat Retention
- ≥ 72 hours
- Working Pressure
- ≤ 6 bar; T/P valve + magnesium rod
Support Frame
- Material
- Galvanized steel / Aluminum alloy
- Surface Treatment
- Rust-proof, outdoor installation
- Service Life
- ≥ 15 years
Core Application Scenarios
- 01Residential rooftops in warm, freeze-free climates
- 02Villas and apartments needing mains-pressure hot water
- 03Hard-water regions (enamel tank resists scaling)
- 04Small hotels and gyms with steady demand
